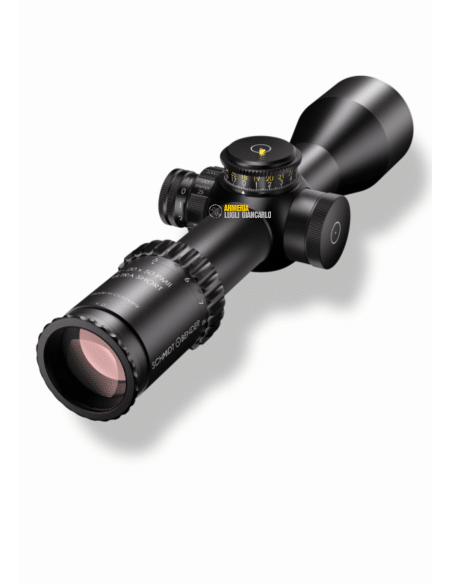

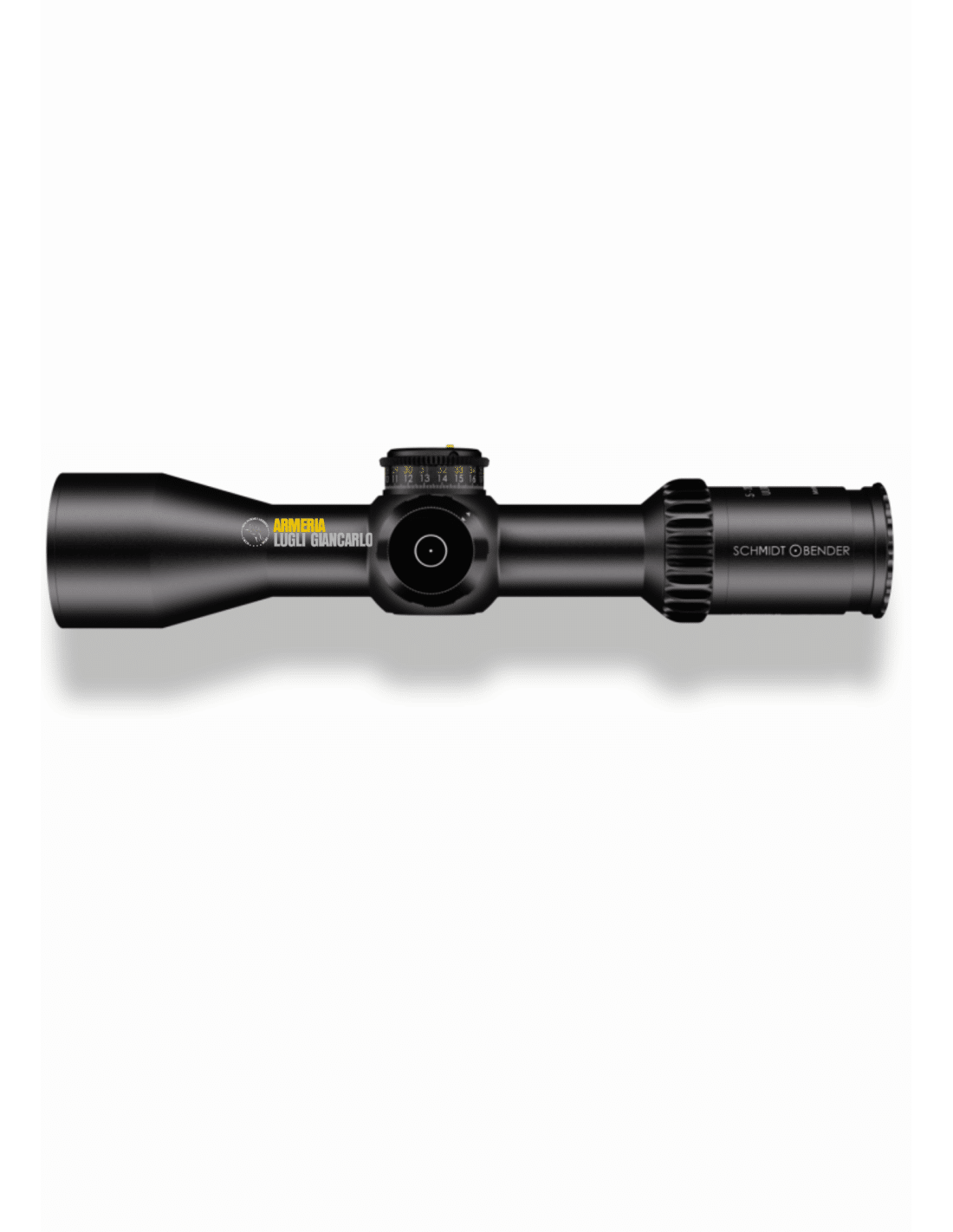

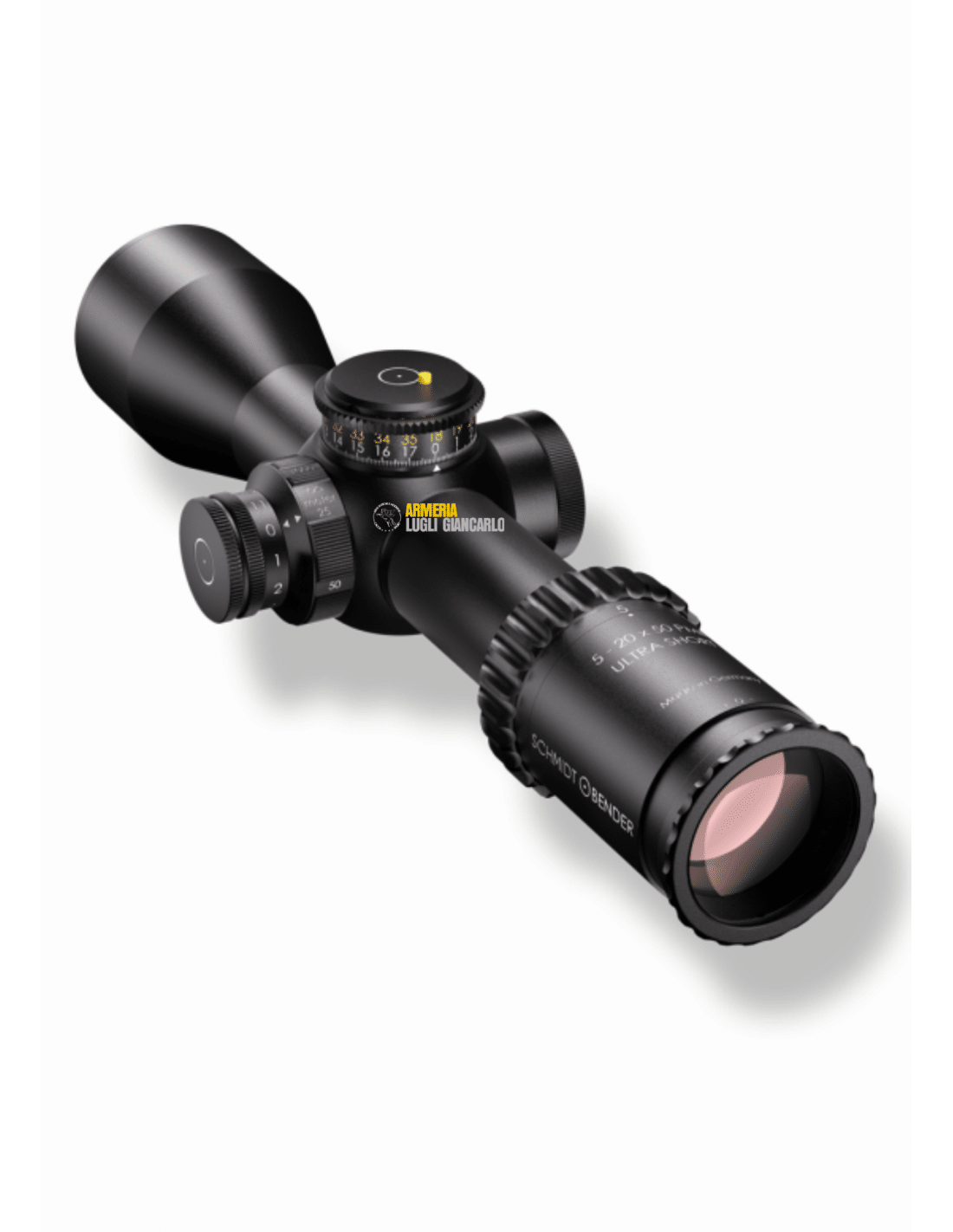

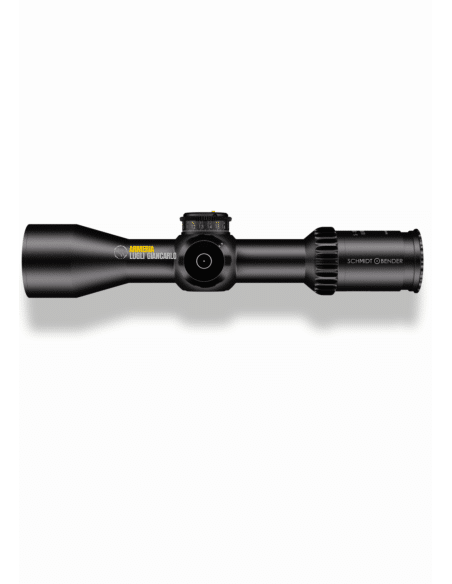

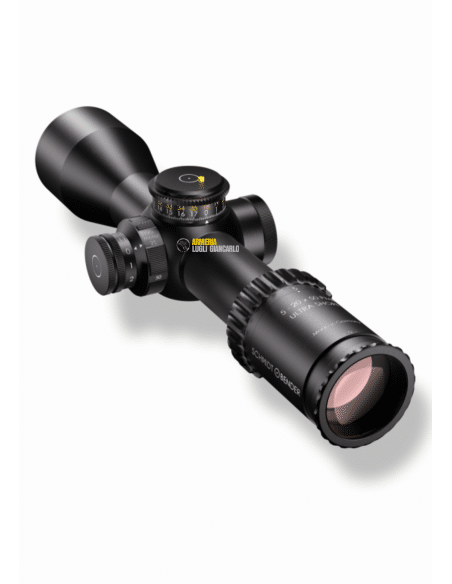

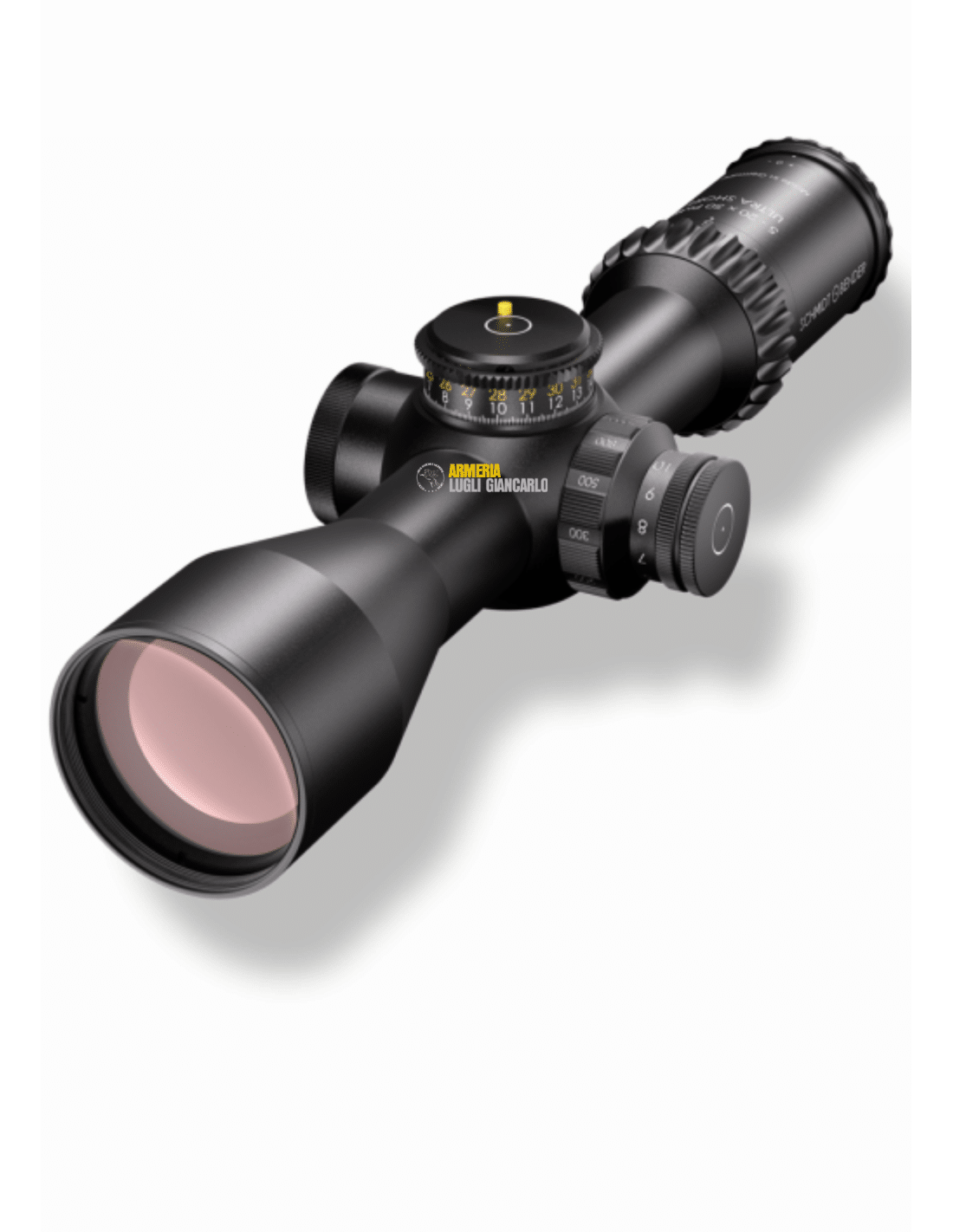

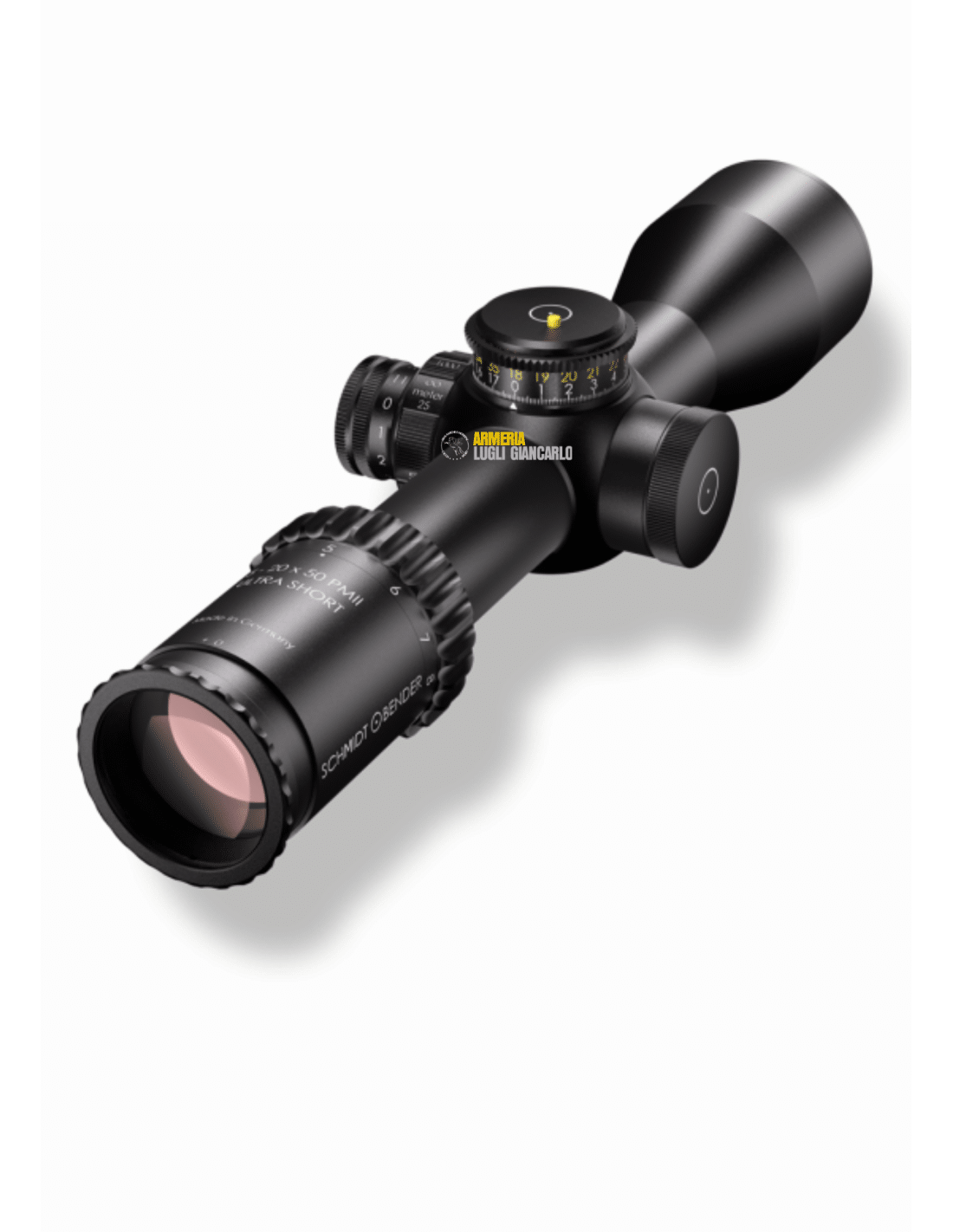

Ottica SCHMIDT & BENDER 5-20x50 PM II Ultra Short LPI 173-911-562-G9-E9

COMPACT AND FUNCTIONAL

The 5-20x50 PM II Ultra Short is the world's shortest, fully functional sniper riflescope.

The riflescope won the “G210” tender of the special forces of the German Armed Forces KSK and KSM. It is also used by the Netherlands and by military special forces, including NATO partners and anti-terror units.

In addition to the mechanical robustness typical of Schmidt & Bender, it offers outstanding optical quality, high transmission and resolution. The latest version is equipped with the new ‘LPI’ (illuminated parallax integrated), which enables optimized mounting and easier operation for left-handed shooters. The new magnification ring also allows the new ‘Throw Lever’ to be mounted for faster magnification changes.

Due to its short design, it is suitable for use on semi-automatic rifles with short rails, but can also be used on bolt action rifles in .50 caliber. In the prone position, attachments can be easily operated without breaking up the shooting position.

1. Diopter adjustment (dpt)-3 to +2
2. Exit pupil diameter (mm/in)10,0-2,5/0.39-0.10
3. Eye relief distance (mm)/(in)90/3.54
4. Field-of-view (m/100 m)/(ft/100 yd)7.8-2.0/23.4-5.9
5. Field-of-view (°)4.5-1.1
6. Illumination11
7. Length (mm/in)299/11.77
8. Magnification5-20
9. Main tube diameter mm34 mm
10. Mounting SystemRing mount
11. Objective diameter (mm/in)50/1.97
12. Turrets (Elevation/Windage) DT35 MTC LT / ST ZC CT (MRAD)Adjustment range elevation (internal) 41.3 MRAD Adjustment range elevation 35 MRAD Adjustment range windage (internal) 31.9 MRAD Adjustment range windage +- 6 MRAD Click value 0.1 MRAD
13. Twilight factor15,8-31,6
14. Weight (g)870/30.69

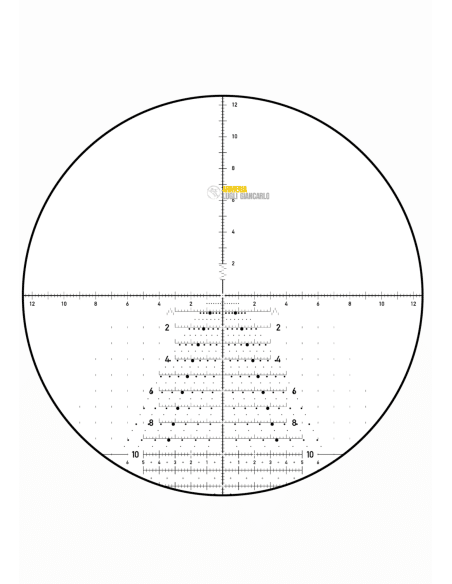

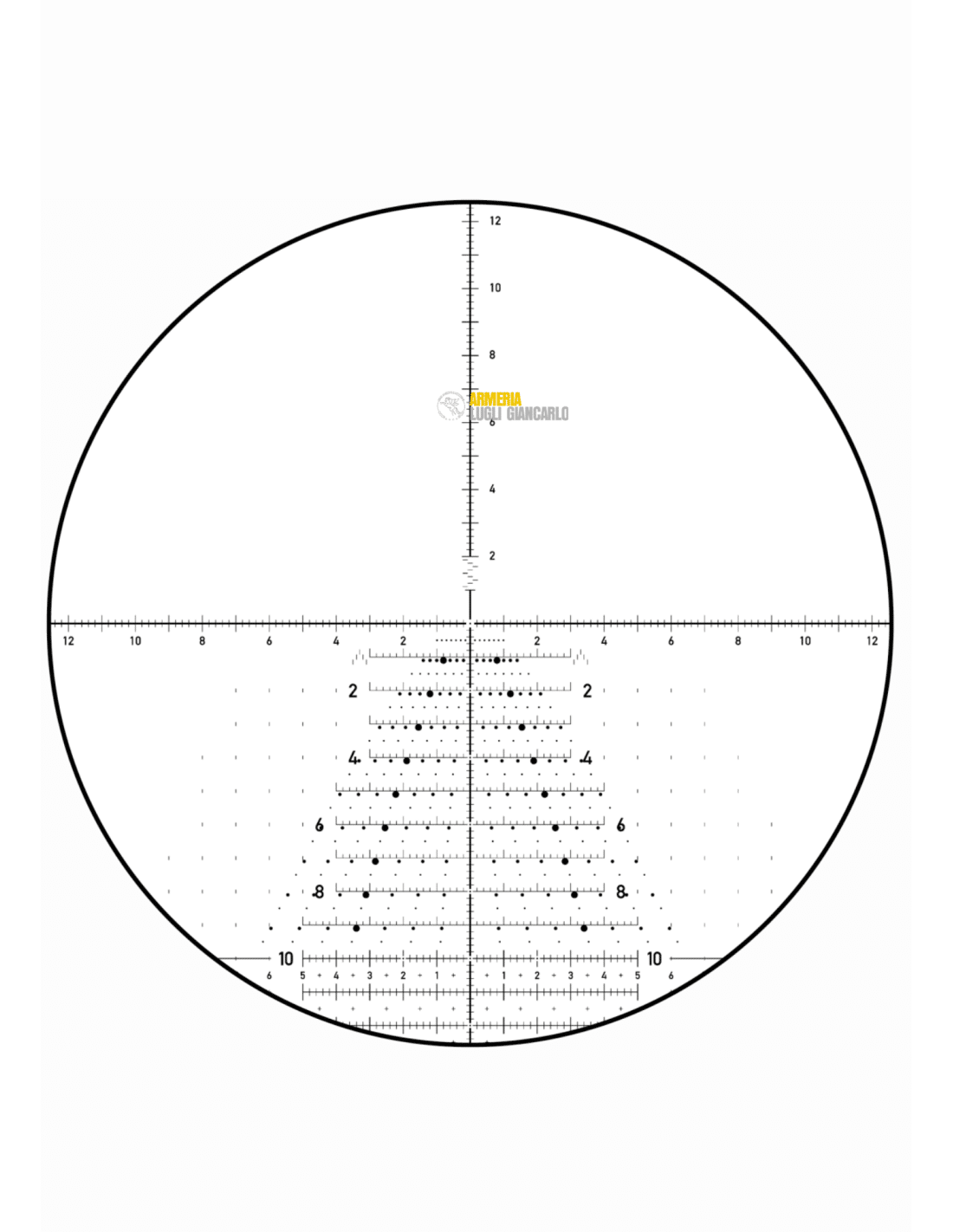

15. illuminated reticleyes
16. Turret Rotationclockwise
17. Parallax adjustment (options)yes
