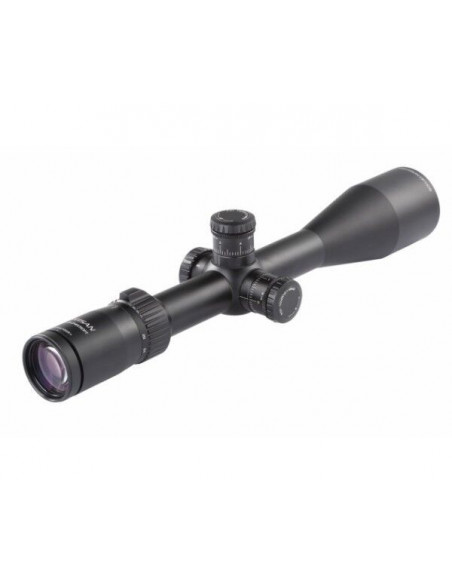

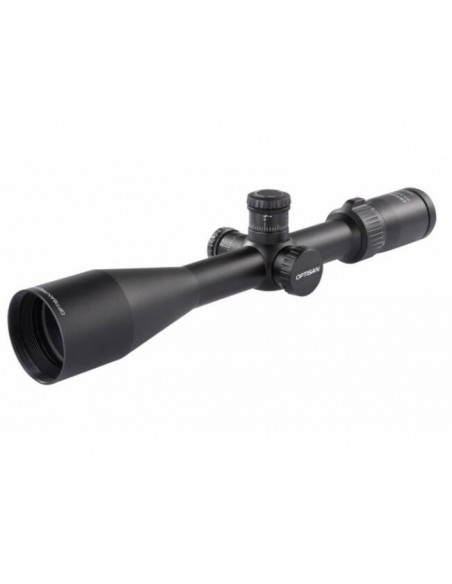

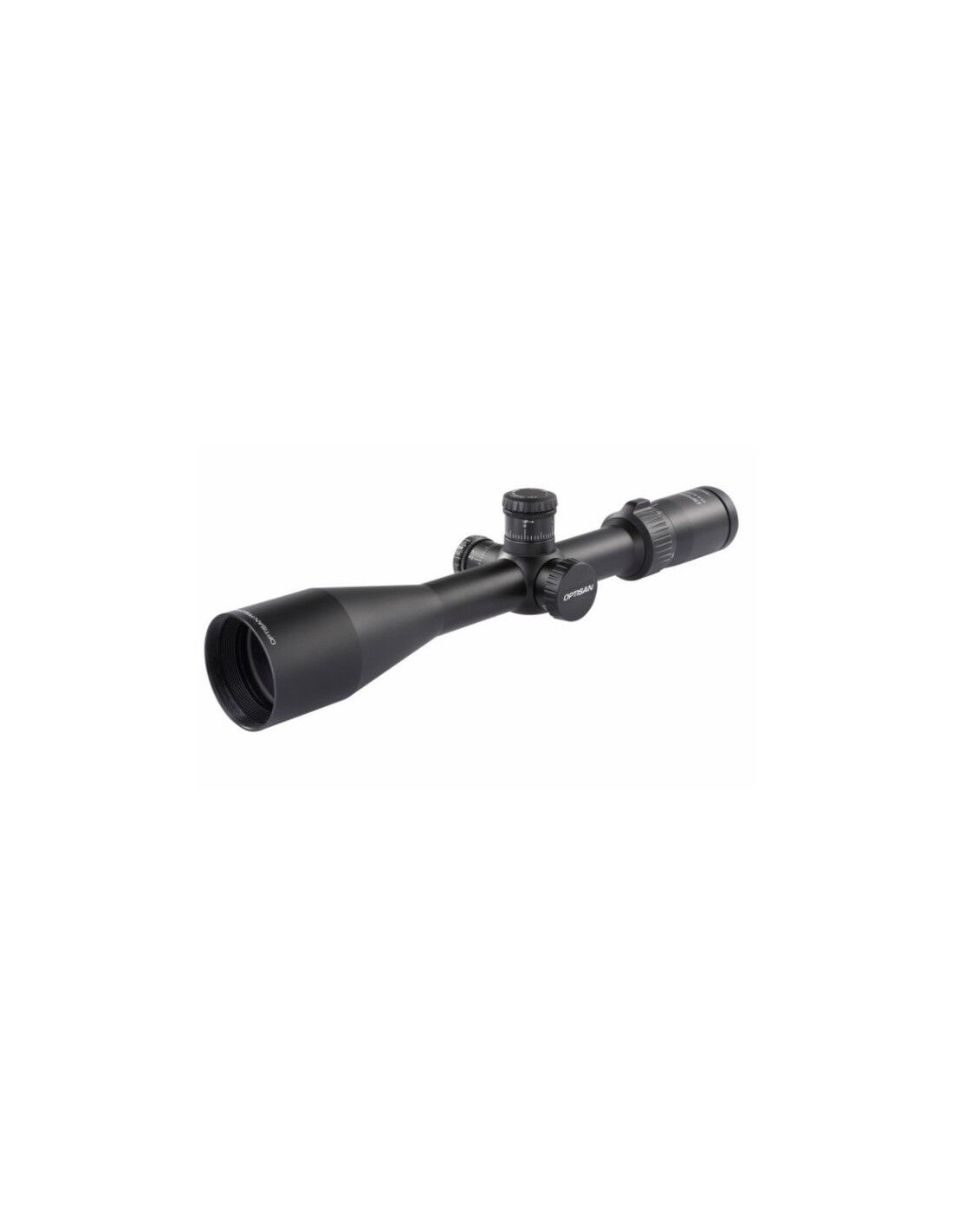

The new Optisan EVX 6-24x56 riflescope is ideal for airguns, rimfires and even full bore centerfire rifles
The EVX line is re-engineered to top the generation I flagship Viper line first introduced back in 2006. The new Optisan EVX Line is designed and engineered for sub-MOA precision shooting and hunting and is field tested holds up to .308 and .300WM.
The GEN II redesigned optical system has a 25% larger field of view with generous eyebox which shooters will find it handy encountering quick target acquisition.
With mil/mil matching turret / reticle and a redesigned mil-hash reticle for long range holdover as well
Lockable target turrets which are thumbwheel adjustable making it quick and easy to make precise adjustments.
Parallax adjustment via a side focus wheel which offers adjustment from 10 yards to infinity.
And included are a 3" sunshade, a 3 inch sidewheel and flip up lens caps.
MIL-SFPMH10X Reticle
The MH10X is a second focal plane MIL based hashmarked ranging reticle designed for accurate ranging at 10X, holdover, and windage corrections. Subtension detail with SFPMH10X reticle as below. Reticle subtensions correct at 10X.
Second focal plane reticle. Reticle subtensions correct at 10X. Reticle illuminated in red as shown.
OPTICAL DATA
MECHANICAL DATA
ENVIRONMENT DATA
RETICLE DATA
3″ Sidewheel
3″ Sunshade
Metal filp up covers
Warranty - 10 years return to retailer
The EVX line is re-engineered to top the generation I flagship Viper line first introduced back in 2006. The new Optisan EVX Line is designed and engineered for sub-MOA precision shooting and hunting and is field tested holds up to .308 and .300WM.
The GEN II redesigned optical system has a 25% larger field of view with generous eyebox which shooters will find it handy encountering quick target acquisition.
With mil/mil matching turret / reticle and a redesigned mil-hash reticle for long range holdover as well
Lockable target turrets which are thumbwheel adjustable making it quick and easy to make precise adjustments.
Parallax adjustment via a side focus wheel which offers adjustment from 10 yards to infinity.
And included are a 3" sunshade, a 3 inch sidewheel and flip up lens caps.

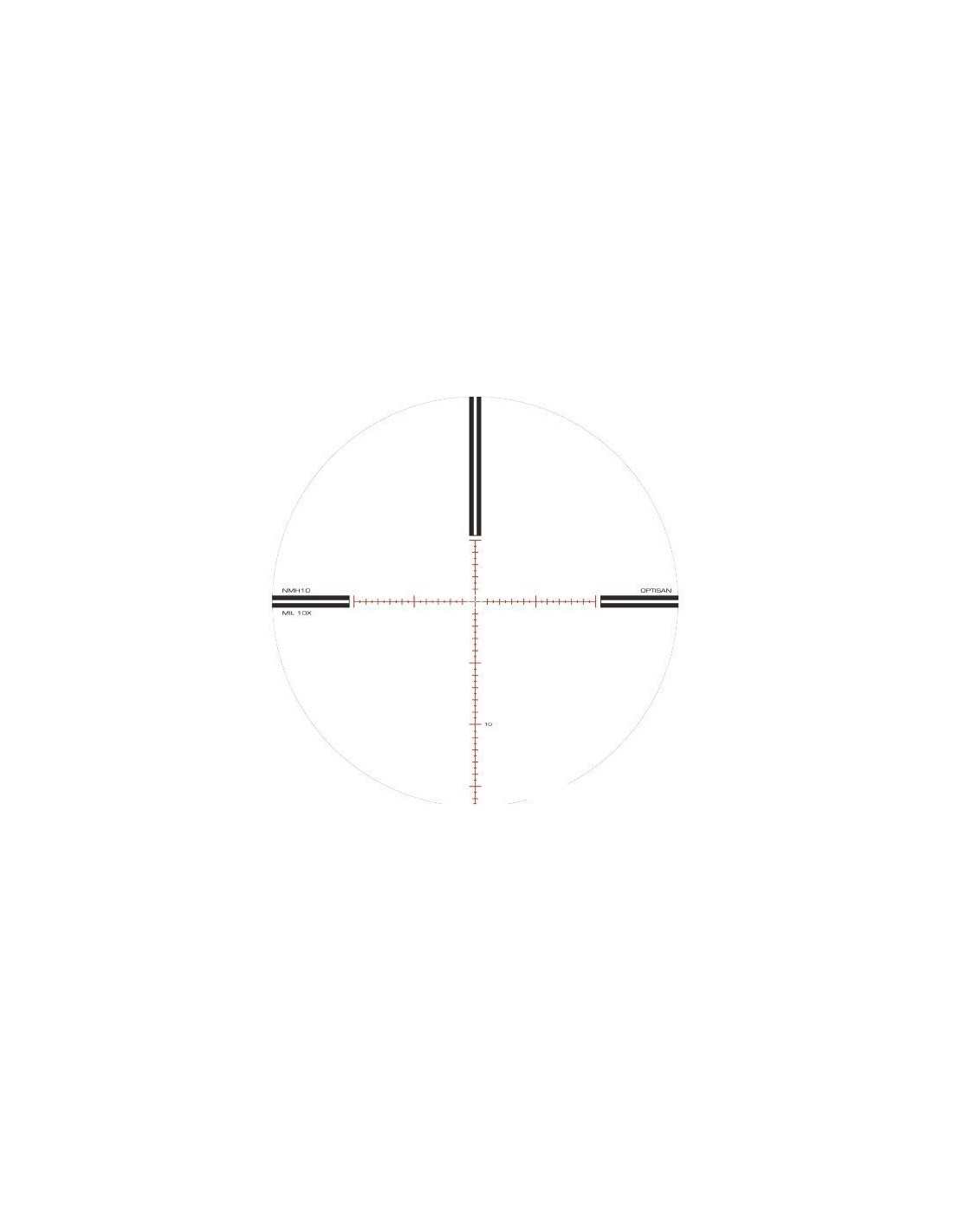

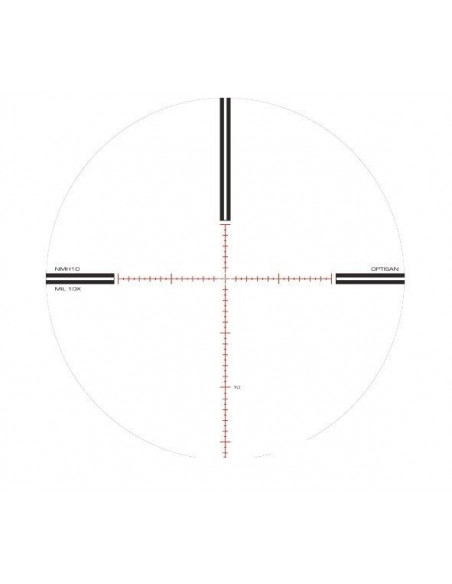

MIL-SFPMH10X Reticle
The MH10X is a second focal plane MIL based hashmarked ranging reticle designed for accurate ranging at 10X, holdover, and windage corrections. Subtension detail with SFPMH10X reticle as below. Reticle subtensions correct at 10X.
Second focal plane reticle. Reticle subtensions correct at 10X. Reticle illuminated in red as shown.
OPTICAL DATA
- Magnification - 6-24x
- Objective Diameter (mm) 56mm
- FOV (ft/100yds) 19.4 - 4.85
- Eye relief (in) 3.5-3.8"
- Exit Pupil - 2.5mm
- Diopter Range (dpt) +2/-2
- Parallax Adjustment 10yds – infinity (100yds parallax free)
- Lens Coating - Fully Multi-coated
MECHANICAL DATA
- Tube Construction - One-piece tube, aircraft aluminum
- Windage & Elevation Adjustment (value per click) 0.1 mrad
- Turret Style - Push pull lockable
- Travel Per Rotation 4.8 mil
- Windage& Elevation adj. range >= 15 mil
- Eye Piece Diameter - 1.73” / 44mm
- Eye Piece Length - 2” / 51.2mm
- Mounting Length rear - 58mm
- Mounting Length front - 62.8mm
- Tube Dia. - 30mm
- Length 14.8” / 376mm
- Weight - 828g / 29.2oz
- Surface Finish - Matte Black
ENVIRONMENT DATA
- Functional temperature -20 ~ 50 degree celcius
- Storage temperature -20 ~ 50 degree celcius
- Submersion tightness JIS 7
RETICLE DATA
- Reticle - SFPMH10X
- Calibrated Ranging Power - 10X
- Focal plane - Second
- Illumination - 6 Steps illumination with off setting in between
3″ Sidewheel
3″ Sunshade
Metal filp up covers
Warranty - 10 years return to retailer
